SELF-PROPELLED SPRAYER FOR DISINFECTING APPLICATIONS
ATOM Disinfection
ATOM Disinfection
ATOM DISINFECTION is a self-propelled sprayer for the professional management of disinfecting and sanitizing spraying operations in farms and for civil, industrial and environmental application.
ATOM DISINFECTION combines extremely high performances and total driver safety during disinfecting operations

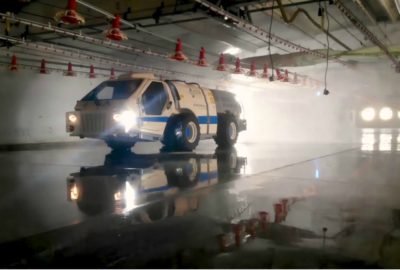

Thanks to its compact dimensions and manoeuvrability, ATOM safely performs spraying operations even in very low sheds and within limited operating space.
The power and extreme efficiency of the blowing system allows quick and efficient disinfecting operations both inside and outside of sheds, warehouses and farms, as well as public areas in municipalities, squares, roads and parks.
ATOM DISINFECTION main features are:
- Compact dimensions
- Powerful blower system
- 360° arrangement of nozzles for spraying ground, walls and ceilings
- Biosecurity is guaranteed by specific nozzles for wheels disinfection
- Cab with Category 4 top level protection
- Specific air filters against disinfecting chemicals
- Very good driving comfort and excellent manoeuvrability
The disinfection equipment is available for ATOM 1000, ATOM 2000 and ATOM 4000.
On ATOM 1000 and ATOM 2000 it is possible to have a super low machine profile, down to 138 cm cab included.
SPECIAL EQUIPMENT
BLOWER SYSTEM
VAC system, specifically designed for disinfecting operations.
VAC blower drives the airflow with maximum power vertically, thus ensuring an effective spraying of roof.
VAC ensures a powerful and even coverage of floor, walls and roof in a single pass, thus reducing working time.
BLOWER SYSTEM
VAC system, specifically designed for disinfecting operations.
VAC blower drives the airflow with maximum power vertically, thus ensuring an effective spraying of roof.
VAC ensures a powerful and even coverage of floor, walls and roof in a single pass, thus reducing working time.
SPECIAL NOZZLES SET-UP FOR DISINFECTION
ATOM DISINFECTION is equipped with groups of specific nozzles for disinfecting operations.
FLOOR WASHING SYSTEM
This system has special adjustable cone nozzles.
It ensures an effective washing of the floor.
HAND GUN + HOSE REEL SYSTEM
This system has a hand gun and a stainless steel hose reel with about 30 meters hose.
It allows manual spraying in very small spaces and utility rooms.
WHEELS WASHING SYSTEM
This system has specific nozzles for wheels washing and an electric valve remote controlled from the cab.
It allows the quick disinfection of all wheels.
CHEMICALS SUCTION SYSTEM
With its Venturi injector, this system allows chemicals suction and direct tank filling.
The system stays inside the tank.
Equipped with quick plug for connection of 3 meters hose.
TANK
Reinforced fiberglass tank with inside protective layer.
- Capacity ATOM 1000: 1000 litres.
- Capacity ATOM 2000:2000 litres.
- Capacity ATOM 4000:4000 litres.
- Inside baffle anti-rolling.
- Flush tank.
- Hand wash tank.
Also available a full AISI 316 stainless steel tank option.
CHEMICALS CIRCUIT
- Diaphragm pump, brass manifolds and heads.
- Up to 220 liters/min, 50 bar.
- Special diaphragms for the use of disinfecting chemicals.
- Stainless steel AISI 304 pressure fittings available.
- Low pressure hydraulic tank agitation system, for a perfect agitation of chemicals mixture minimizing foam production.
NOZZLES AND TIPS
- Available front and rear nozzles manifolds.
- 4 independent nozzles sections.
- Single and double no-drip nozzles.
- Adjustable cone nozzles.
