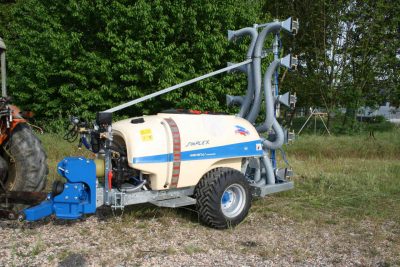

ECO SIMPLEX is the series of trailed sprayers for the professional management of the chemicals application on vineyards and orchards.

The blower system SIMPLEX with centrifugal fan and independent air-outlets, is very versatile: the geometry of the outlets can be easily adjusted according to the shape of the vegetation.

Thanks to the versatility of the air outlets and to the big air volume, SIMPLEX becomes always the specific sprayer for a targeted application, thus avoiding drift and fighting better against the wind.

All SIMPLEX sprayers are available with road homologation.

TECHNICAL SPECIFICATIONS

SIMPLEX BLOWER

The special design of the star-shaped SIMPLEX conveyor allows the best uniformity to all air outlets and a symmetrical and even application at any level of the vegetation.

The high efficiency of the system and the reduced power losses along the hoses leads to a very powerful air flow and reduced noise.

All the outlets are independent and adjustable in any direction and inclination.

SIMPLEX blowers have a large front suction, ensuring a clean application, avoiding re-circulation of chemicals mist and suction of leaves and dust.

SIMPLEX blowers are available with 8 or 10 air outlets.

SIMPLEX BLOWER WITH 8 AIR OUTLETS

Standard equipment:

  • Centrifugal fan diameter 450 mm with automatic clutch.
  • 4+4 air outlets on standard espalier frame
  • 8+8 double no-drip nozzles on stainless steel rings

Options:

  • 3+3 nozzles per ring
  • Triple nozzles

Suitable for:

  • Vineyards in espalier
  • Fruit orchards in espalier

SIMPLEX BLOWER WITH 8 AIR OUTLETS

Standard equipment:

  • Centrifugal fan diameter 450 mm with automatic clutch.
  • 4+4 air outlets on standard espalier frame
  • 8+8 double no-drip nozzles on stainless steel rings

Options:

  • 3+3 nozzles per ring
  • Triple nozzles

Suitable for:

  • Vineyards in espalier
  • Fruit orchards in espalier

SIMPLEX BLOWER WITH 10 AIR OUTLETS

Standard equipment:

  • Centrifugal fan diameter 450 mm with automatic clutch
  • 5+5 air outlets on standard espalier frame
  • 10+10 double no-drip nozzles on stainless steel rings

Options:

  • 3+3 nozzles per ring
  • Triple nozzles
  • Special extendable lower and upper air outlets for double curtain vineyards

Suitable for:

  • Vineyards in espalier
  • Fruit orchards in espalier
  • Double curtain vineyards

SIMPLEX BLOWER WITH 10 AIR OUTLETS

Standard equipment:

  • Centrifugal fan diameter 450 mm with automatic clutch
  • 5+5 air outlets on standard espalier frame
  • 10+10 double no-drip nozzles on stainless steel rings

Options:

  • 3+3 nozzles per ring
  • Triple nozzles
  • Special extendable lower and upper air outlets for double curtain vineyards

Suitable for:

  • Vineyards in espalier
  • Fruit orchards in espalier
  • Double curtain vineyards

CHASSIS

Fully laser cut chassis and rear bumper in AHSS Advanced High Strength Steel.

The closed sections stringers lead to a superior strength and stability of the chassis, the rounded shape of the edges in contact with the tank prevents any possible damage to the fiberglass and grants the best reliability over the years.

The chassis, the rear bumper and all other steel parts are hot galvanized.

A solid steel frame fixed to the rear part of the chassis protects the lower part of the conveyor.

TANK

  • Reinforced fiberglass tank, acid-proof treatment.
  • Available capacities: 1000, 1500, 2000 e 3000 litres.
  • Internal tank separator on tank capacity 3000 litres.
  • Spray circuit rinse tank.
  • Hand-washing tank.
  • Tank mixture agitator with triple flow, with total flow of 600 litres/min, allowing a perfect agitation even with dense mixtures.
  • Double mixing system on tank capacity 3000 litres.

CHEMICALS CIRCUIT

  • Diaphragm pump with brass heads and manifolds.
  • Available flow 125/160/185/220/260 l/min, 50 bar.
  • Possible low/medium/high spray rates (from 100 up to 10’000 l/ha).
  • Suction filter and pressure filters before section valves.
  • Manual or electric pressure regulator.
  • Two or more nozzles section valves.
  • Dump valves.
  • Stainless steel chemicals pre-mixer/can rinse and Venturi chemicals suction system.
  • Water suction system for tank filling with centrifugal pump.

NOZZLES AND TIPS

  • Possibility to install front and rear rings of nozzles.
  • 2, 4, 6 or 8 independent nozzles sections.
  • Double or triple no-drip nozzles.
  • Long reach nozzles.
  • Adjustable cone nozzles.
  • Anti-drift nozzles.

TRANSMISSION

Fan gear box: 2 speed + neutral, exclusive design for our machines. Extended main body and big bearings ensure extreme reliability and long-lasting.

High power gearbox with synchronized transmission and pre-selection of the fan speed is available as option.

Long-life bearings drive shaft inside the tank.

Freewheeling high power drive shaft available as option.

CONTROLS

Electric remote controls box: nozzles sections, pressure regulator, dump valves.

Electronic LCD display for spray pressure.

Electronic LCD display for tank level and spray pressure.

Automatic controller for spray rates: spray pressure, speed, total hectares, total litres sprayed.

Automatic controller for spray rates: spray pressure, speed, total hectares, total litres sprayed, digital level of the tank.

GPS guidance system with spray controller interface.

DRAWBAR

Standard drawbar, eye type, adjustable.

Steering drawbar for 3-point-linkage.

The sprayer perfectly follows tractor tracks. Sharper turns are possible. The use of a wide angle PTO shaft is advisable.

Steering drawbar, eye-type, with hydraulic lock system; remote fast-plugs to be connected to the tractor.

SUPERTURN steering drawbar for 3-point-linkage.

The drawbar allows constant alignment of the sprayer to tractor PTO, also when turning. The drive shaft is always straight so the tractor PTO can be always engaged, working no-stop. Standard PTO shaft can be used.

The sprayer perfectly follows tractor tracks. Very sharp turns are possible.

SUPERTURN steering drawbar, eye-type, with hydraulic lock system; remote fast-plugs to be connected to the tractor.

DIMENSIONS

Nominal Capacity [l] 3000 2000 1500 1000
Length [m] 4.65 4.3 4.08 3.8
Width [m] 2.03 1.77 1.63 1.63
Height [m] 3.58 3.5 3.5 3.42
Fully loaded weight [kg] 4365 3060 2590 2005
